Ferrowave Flag

On Metal Labels

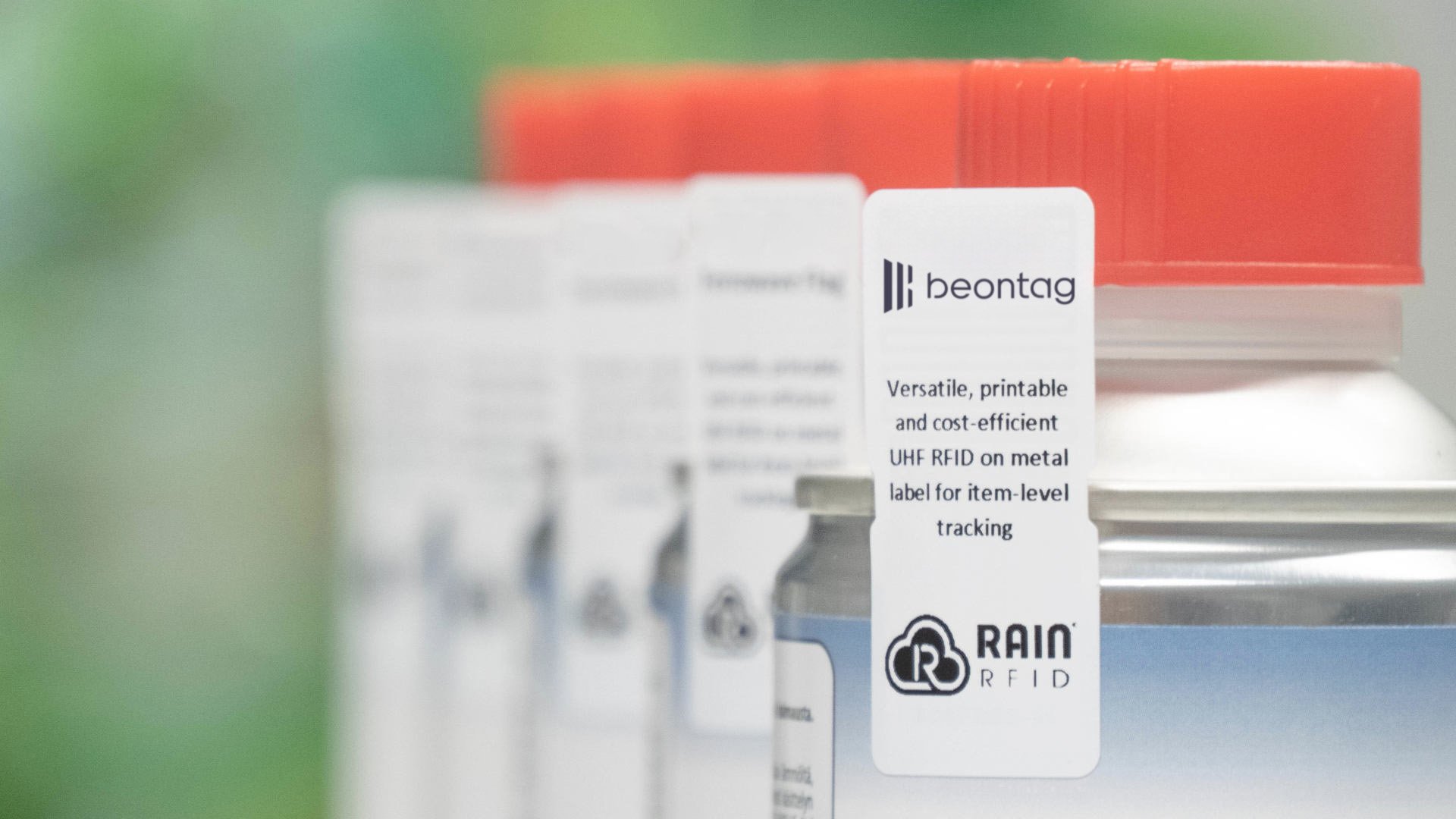

Ferrowave Flag

Description

Ferrowave Flag is versatile on metal label with excellent read range of up to 12 meters globally. Flag structure is optimized for easy attachment on challenging metallic parts while cost engineered materials enable item-level tracking.

Application

Mass Market and Retail Asset Management Logistics and Supply Chain Automotive

Key benefits

Easy attachment on all surfaces
Excellent performance on-metal

Technical features

Final dimension

46 x 21 x 0,2mm

IC	Frequency	EPC memory	User memory
NXP UCODE 9	Global 865 - 928 MHz	96 Bit	-
Impinj M730	Global 865 - 928 MHz	128 Bit	-
Impinj M780	Global 865 - 928 MHz	496 Bit	128 Bit

Download datasheet or share it

whatsapp share

Related case studies

Smart Industries

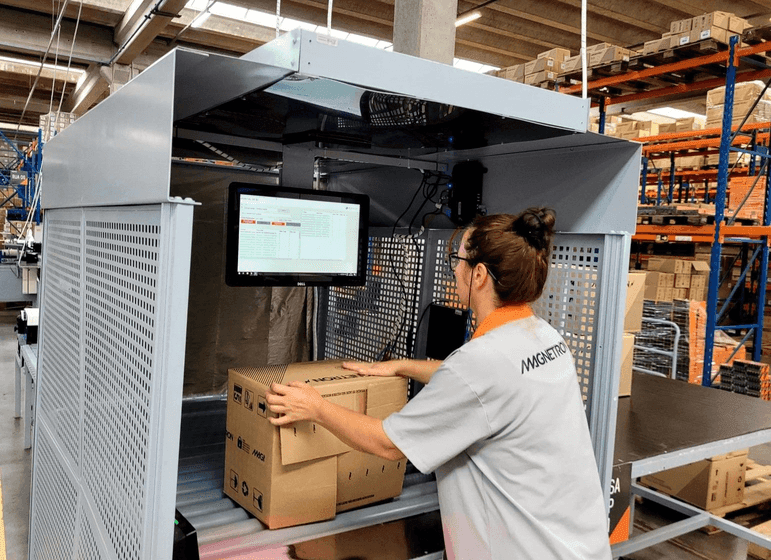

RFID overcomes barriers and guarantees Magnetron an increase in productivity and revenue

Smart Industries

RFID Asset Tracking Improves Rail Safety for Dutch Company Voestalpine

Explore more products that may interest you

Standard Inlays and Labels

Sustainable Products

On Metal Labels

ECO Stripe X

UHF RFID / Antenna 43 x 21 mm

ECO Stripe X is a small and flexible tag optimized for retail, industry and pharma. It can be used as on-metal and general-purpose tag as it works well on metal, cardboard, plastic and paper surfaces.

See datasheet

On Metal Labels

ESD On Metal Label

UHF RFID / Dimensions 70 x 30 x 1,2 mm

Designed to be usable on any surface but optimized for ESD plastic that is generally a challenge for RFID tags. With the optional protective layer covering the printing ESD On Metal Label offers a new level of durability against chemicals and washing.

See datasheet

On Metal Labels

Ferrowave Classic

UHF RFID / Dimensions 100 x 17 x 1,1 mm

Ferrowave Classic is optimized for the packaging and component tracking applications that don't need the most robust industrial structure but are more cost sensitive. Cost-engineered on metal label structure offers a solution for different needs from tagging automotive components to consumer packages with hard-to-tag metallic foils and liquid containers.

See datasheet

baseball bat with Beontag rfid tag Ferrowave Micro

On Metal Labels

Ferrowave Micro Global

UHF RFID / Dimensions 45 x 8 x 1,5 mm

Ferrowave Micro on metal label boasts a small footprint and optimal read performance to manage specialty retail items that can be most challenging to track with standard RFID tags. Ferrowave Micro is optimized for item-level high volume tracking of specialty retail categories such as sports equipment, beauty and personal care items and also serves as brand authentication for high value goods.

See datasheet

On Metal Labels

Ferrowave Micro Regional

UHF RFID / Dimensions 58 x 6 x 1,3 mm

Ferrowave Micro is optimized for item-level, high volume tracking of specialty retail categories such as sports equipment, beauty and personal care items and also serves as brand authentication for high value goods.

See datasheet

Specialty Labels

On Metal Labels

Heatwave Flag Printable

UHF RFID / Antenna 72 x 8,5 mm

Heatwave Flag Printable comes printer-ready, perforated on reel. Special white surface material is tested to be compliant with standard thermal transfer RFID printers while also offering protection against temperatures up to 260°C.

See datasheet

On Metal Labels

Silverline Blade II

UHF RFID / Dimensions 60 x 25 x 1,4 mm

Despite the small footprint Silverline Blade II boasts a respectable 10 meter (33 ft) read range on metal. Even though being optimized on metal Blade works also on plastic and liquid containers. Industrial grade adhesive is having very high initial tack, meaning short curing time. This makes Silverline Blade II optimal solution for industrial and IT asset tracking as well as healthcare equipment.

See datasheet

On Metal Labels

Silverline Blade II+

UHF RFID / Dimensions 60 x 25 x 1,4 mm

Silverline Blade II+ offers global tuning for applications requiring readability worldwide. With M780 IC, Blade II+ also enables higher memory for applications such as Automotive where standardized encoding schemes are used. Blade II+ is optimized for metal surfaces with up to 7m (23ft) read range but works also well on plastic and liquid containers. Blade II+ offers the same high tack adhesive as standard Blade II.

See datasheet

On Metal Labels

Silverline Classic II

UHF RFID / Dimensions 100 x 40 x 1,3 mm

The original on metal label in the RFID industry. Biggest size in Silverline family offers the exceptional performance (up to 15 m / 50 ft) and large area for the printed information. The performance, durable PET face and industrial adhesive optimized for metallic surfaces makes Silverline Classic II also an option for metallic containers.

See datasheet

On Metal Labels

Silverline Micro II

UHF RFID / Dimensions 45 x 13 x 1,3 mm

Smallest option in the Silverline family. With footprint of only 45 x 13 mm Silverline Micro II enables reliable tracking of even smallest of assets, from IT and enterprise assets to healthcare equipment and tools. Adhesive is optimized for metallic and painted metal surfaces.

See datasheet

On Metal Labels

Silverline Slim II

UHF RFID / Dimensions 100 x 13 x 1,3 mm

Slim form factor combined with excellent performance is a choice for assets on which the suitable label width is more limited, for example applications involving smaller industrial assets, pipes and electronics. With patent-pending antenna design Silverline Slim II offers well balanced performance on different materials. Adhesive is optimized for metallic and painted metal surfaces.

See datasheet

On Metal Labels

Steelwave Flex

UHF RFID / Dimensions 55 x 25 x 2,2 mm

Flexible on-metal label with extremely strong adhesive. Due to unique more flexible structure compared to other on-metal labels in the market Steelwave Flex is optimal solution to tag small components and assets. Flex is optimized for metal surfaces but do work also on plastics and liquid containers. Steelwave Flex comes with VDA encoding scheme compliant IC by default.

See datasheet
